Meiji Finer Core - Professional Airbrush - 2116412

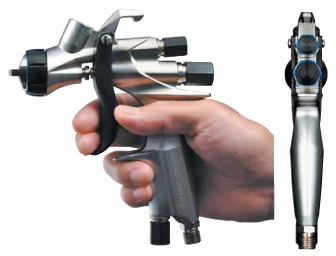

Designed "tool" as an extension of the hand

Grasp & use
A shape with a curved surface, designed for palms and joints of hands, which are the points for support, force, and action when force is exerted .

Hand guard (flange)
The horizontally arranged handguard (flange) acts as a guide for the index finger and thumb, making the device more holdable during painting work.

Fits (in the palm)
The unique rhomboid-like shape of the grip originated from our pursuit for a comfortable fit in the palm .

Operability & Elaborate

Introducing the long-awaited next stage in the evolution of spray guns, achieved by front-line professionals without compromise.

Painting quality has improved based on feedback given by professionals.

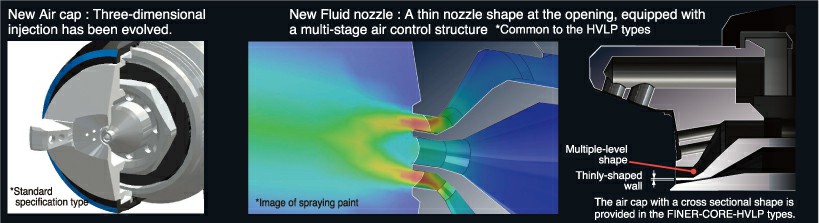

High-atomization technology MMFT
Ever since we succeeded in a trial production on Japan's first domestic painting machine approximately one hundred years ago, we have continued to develop technologies for painting equipment up until today. Utilizing the know-how we have cultivated over the years, we have adopted flat pattern control (a standard specification for CORE ) that minimizes unevenness by positioning the secondary holes of the spray gun optimally, increasing the holes, and arranging them at an angle . Additionally, we have adopted our company's unique high-atomization technology MMFT ( Meiji Micros Fine Technology ) that accelerates atomization under low pressure by controlling the air at multiple levels, feeding it efficiently to the opening, and atomizing it through the thinly shaped structure .

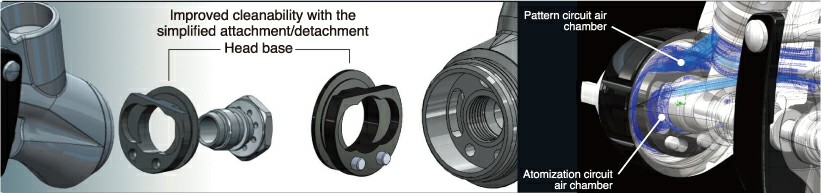

Dynamic Chamber
We made the air circuit as large as possible while seeking to reduce its body size. Combined with separate head bases that have our company's unique and special shapes, we have achived more air volume than that of larger guns. The formation of the heigh-atomization wide pattern has been made possible by providing a stable air flow to the opening.

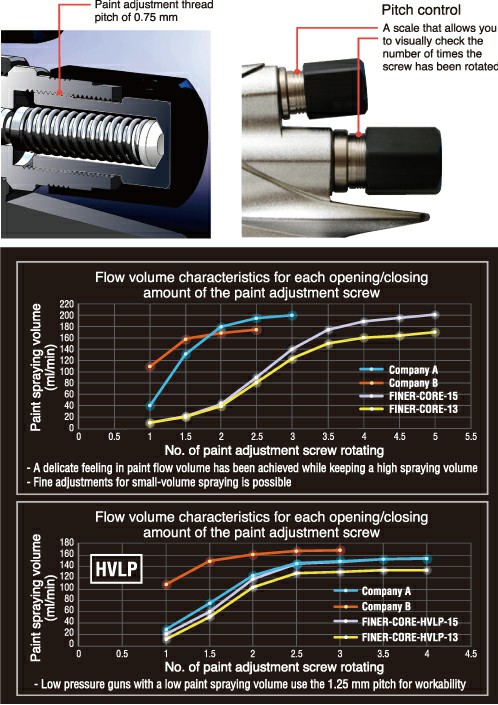

Optimized spray paint volume
A unique characteristic whereby spraying volume smoothly increases. The adjustment range is wide enough to prevent sudden increases in flow, allowing for fine adjustments.
We have adopted our company's unique paint adjustment thread pitch of 0.75mm, which has been inherited in automobile repairing guns for a long time.

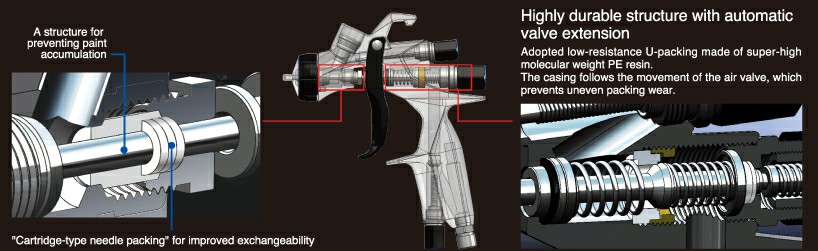

Low-resistance structure and highly durable design
The initial leakage limit is 500,000 times. High durability has been achieved where retightening can be carried out one million times. The sleeve and soft packing gives low-resistance structure which is less likely to affect the sliding of the needle when retightening.

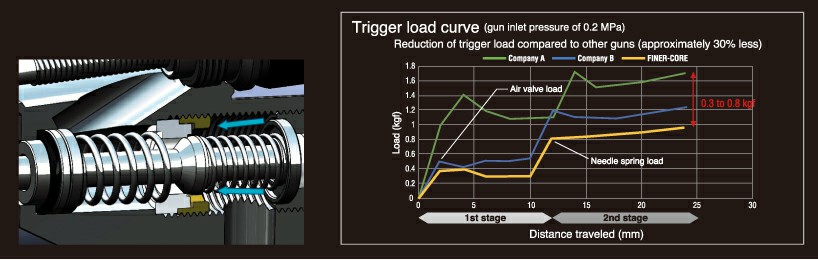

Reduced trigger load structure
The low-friction packing and optimization of the valve shape which has a low pass resistance circuit structure enables trigger handling without rapid pressure fluctuations for the entire stroke range.

Optional items

Gravity paint cup 6CP
- Low and wide design for better handling of spray guns .
- Made of resin which water-based paints can be used , and has improved cleanability .

Box content:

• n. 1 piece Meiji Finer Core - Professional Airbrush - 2116412
• n. 1 Piece 600 ml Gravity paint cup 6CP
• n. 1 piece maintenance kit
• n. 1 piece cleaning kit
