Ani E / 32-B Compressed Air Treatment Group For Air Purification Painting Plants For Furnace Cabins

Modular Filter for Liquid and Solid Impurities Separator in Pneumatic Systems

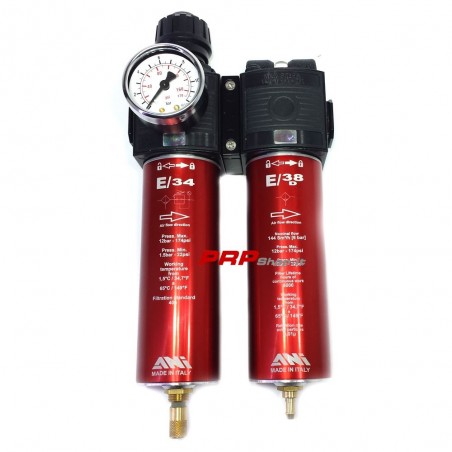

AAni E / 32-B: Filter regulator for painting oven booths (E / 34) + Modular de-oiler micro-filter (E / 38-D).
The E / 32-B group of the E-TECH series combines in a single unit the function of filter-regulator and high-efficiency, high-efficiency filtering unit (E / 34 + E / 38-D).

• Full range of accessories
• Complete with 2 brackets for fixing to the wall
• Connections: 1/2 "BSP or 3/8" BSP with connection sleeves Model: E32-B
• Weight: 2.470 kg - 5.445 lb
• Fluid: Compressed air
• Maximum pressure: 12 bar - 174 psi
• Minimum pressure: 1.5 bar - 22 psi
• Operating temperature from 1.5 ° C / 34.7 ° F to + 65 ° C / 149 ° F
• Degree of retention of solid particles: 0.01µ
• Residual vapors and volatile hydrocarbons: 0.1 mg / m³ [1bar and 20 ° C]

Contents Cardboard box:

• n. n. 1 piece Filter regulator for painting booths (E / 34)
• n. 1 piece Modular de-oiler micro-filter (E / 38-D)
• n. 2 brackets for fixing to the wall
