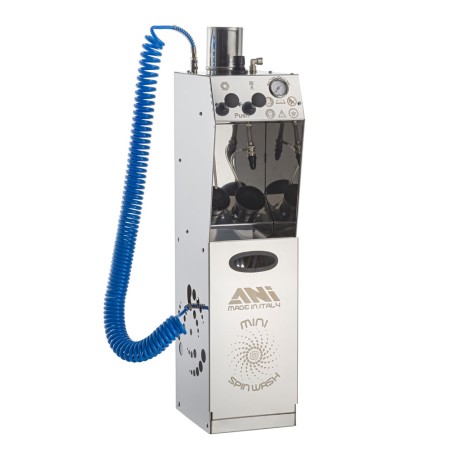

Ani Mini SPIN WASH Spray Gun Washing System

The Mini SPIN WASH is a washing station built entirely of stainless steel that allows you to clean various types of spray guns:

• Gun with gravity cup
• Gun with disposable cup

The Mini SPIN WASH is suitable for all types of paint, thanks to two separate cleaning stations: one for water-based paints and one for solvent-based paints. It is equipped with rotating brushes and an innovative Venturi system that nebulizes the solvent or water at low pressure (max. 5 bar), making the machine extremely efficient with minimal consumption of cleaning product. Paint residues are recovered in recycling containers located at the base of the machine.

The entire brush washing and rotation system is completely pneumatic – the machine has no electrical components or pumps, is easy to clean and requires minimal maintenance. The working pressure is regulated by the built-in reducer. Thanks to its compact size, the Mini SPIN WASH fits easily into the paint booth and can be fixed to the wall using the pre-arranged holes. Equipped with 80 mm smoke extraction chimney, to be connected to the cabin extraction system.

Technical features:

• FIELDS OF USE: Spray gun washing
• POWER SUPPLY: Compressed air
• CONNECTION TO THE COMPRESSED AIR NETWORK: 1/4”F BSP
• SUPPLY PRESSURE: 8 bar (116 psi)
• MAXIMUM OPERATING PRESSURE: 5 bar (51 psi)
• MAXIMUM NOISE LEVEL: 88 dBA
• TANK CAPACITY: 2 litres (122 inch³)
• WORKING TEMPERATURE WORK: -20°C (253°K) to +60°C (333°K)
• Rapid airbrush cleaning system with fume extraction chimney
• Suitable for both water-based and solvent-based paints
• N° 2 2-liter cans (122 inch³)
  • Tank for clean water-based detergent
  • Tank for recovering dirty detergent
• 10-meter spiral nylon hose complete with 17/A quick tap
• Dimensions (HxWxD): 805 x 200 x 310 mm
• Weight: 8.5 kg

Supply contents:

• n. 1 piece Mini SPIN WASH washing station
